Design Features

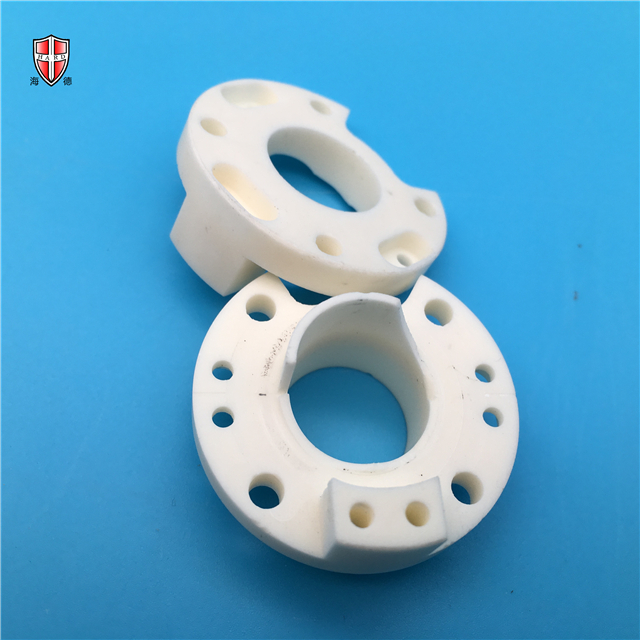

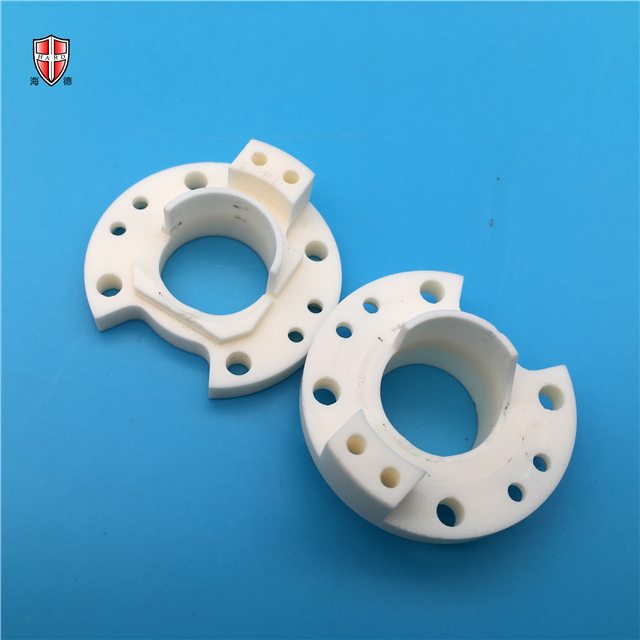

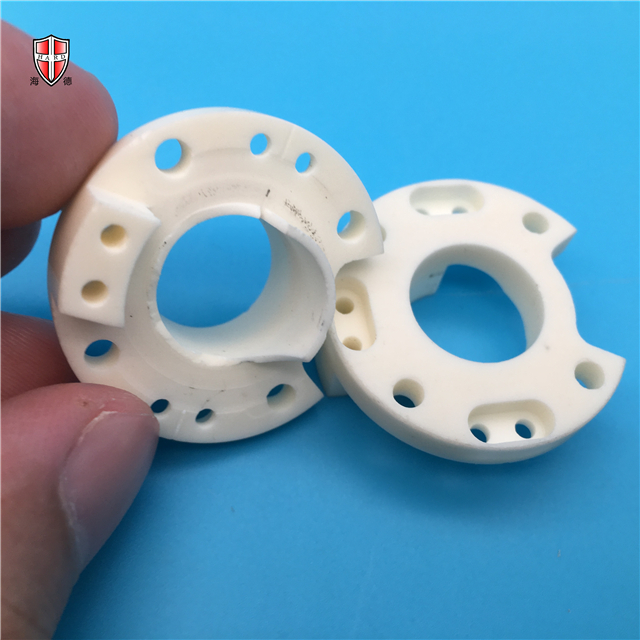

Irregularly shaped alumina ceramic structural components, also known as porous ceramic bases, are made of high-performance alumina

(Al2O3) material and possess the following significant characteristics:

High Hardness and Excellent Wear Resistance

Alumina boasts a Vickers hardness of up to 15.7 Gpa, providing excellent durability in highly abrasive environments.

Good Thermal Stability and Electrical Insulation

With a maximum operating temperature of 1650°C and a breakdown strength exceeding 10 KV/mm, it is suitable for high-temperature

applications and applications requiring electrical insulation.

Complex Structural Design Capability

It can manufacture structural components of various complex shapes and sizes to meet specific application requirements, such as perforated

support platforms or mounting bases.

Optimized Thermal and Fluid Management

The perforated design not only provides fixation capabilities but also facilitates heat dissipation and efficient management of fluids and gases.

High Mechanical Strength and Compressive Strength

With a flexural strength of up to 330 MPa and a compressive strength of 2000 MPa, it ensures the stability and long-term durability of

structural components under physical loads.

Application areas

Irregularly shaped alumina ceramic structural components have wide applications in many high-tech fields:

Automated Machinery

Used as connecting or supporting components in robotic arms or robot joints, providing the necessary mechanical strength and precision.

Electronic Equipment

Serving as a support or mounting platform for electronic components, providing electrical insulation and thermal management solutions.

Precision Instruments

Used as precision components in scientific instruments and medical equipment, such as sensor supports or mounts, ensuring stable

instrument operation.

Chemical Processing and Environmental Technology

Used in chemical reactors or filtration systems, withstanding the effects of high temperatures and corrosive substances.

Irregularly shaped alumina ceramic structural components play a vital role in modern industry and technology due to the high-performance

properties of the material and the flexibility of its design. These components not only meet the industrial demands for high strength, high

temperature resistance, and high precision, but also optimize thermal and fluid management through their porous structure design,

significantly improving equipment performance and reliability. Through precise manufacturing techniques, these ceramic structural

components can meet the requirements of the most demanding applications, providing effective support and protection solutions for a

variety of high-end applications.

In the field of precision ceramic machining and customization, our company is committed to producing various high-performance ceramic

parts, including zirconia ceramics, silicon nitride, and aluminum nitride. These ceramic parts possess excellent thermal stability, electrical

insulation, high-temperature stability, and wear resistance, and are widely used in key areas such as aerospace, electronics, machinery,

military, and automotive. Our products, with their superior performance and reliability, provide customers with crucial support and assurance,

helping them improve production efficiency and optimize product performance.
